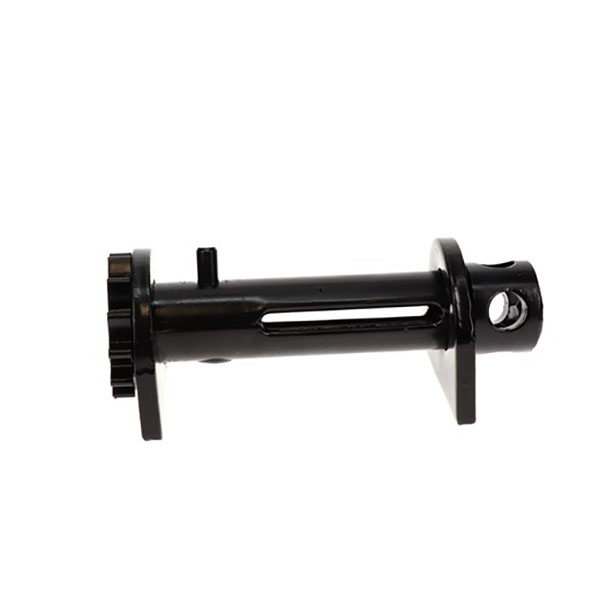

Combination Winch Leg Bracket, Low Profile

Features

Low profile leg bracket combination winch can be used for both wire cable and webbing and features a compact design with leg brackets for alternative installation options. A strong steel frame with a high-strength alloy pawl pin and a seamless, solid steel mandrel offer plenty of strength you can rely on, while smooth ground web slots in the mandrel protect your webbing from abrasion to save you money on replacement straps. Ancra designed the combination winches to be lighter than standard winches to help improve fuel economy and/or allow for greater payloads. To protect the winch from rust and corrosion, Ancra added a durable black powder coat finish, which can withstand up to 250 hours of standard salt spray testing to ensure years of high performance.

The low profile leg bracket combination winch can be easily installed along your truck or trailer for quick access, while the leg bracket design allows for alternate installation options to help with clearance issues or other more complicated tie-down situations. With a working load limit of 5,500 lbs and a low profile leg bracket design, the leg bracket combination winch makes for a versatile and dependable solution for tying down heavy-duty cargo.

Ancra winches comply with DOT, WSTDA-T3 and Canadian Standard 905 regulations.

Specifications

Weight (lbs) 8.7
Weight (kgs) 3.9
Overall Width (inches) 10.3
Inside Frame Width (inches) 7.2
Frame Height (inches) 5
Frame Depth (inches) 3.9
Maximum width of strap used with (inches) 4
WLL - w/Webbing (lbs) 5500
WLL - w/Webbing (kgs) 2497
Stamped w/WLL true
Finish Powder Coat
Material Steel
