Combo Winch-Recessed Box

Features

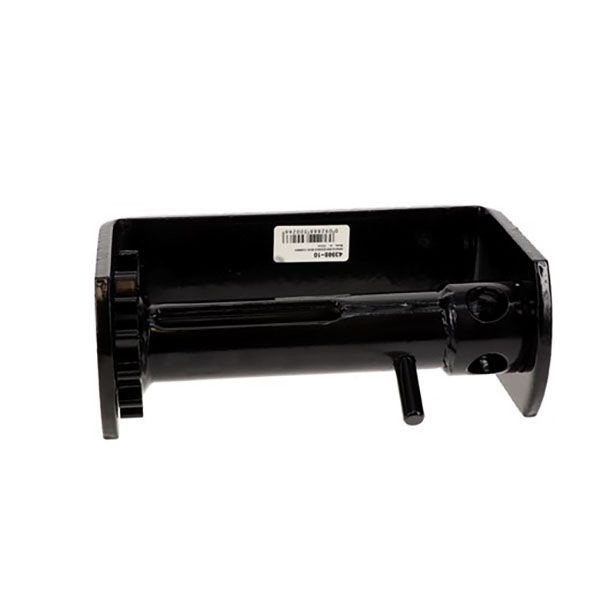

Recessed box combination winch is built to support heavy-duty cargo and designed to keep major components within the winch frame to solve clearance issues when being installed in tight spaces. Made of durable steel and featuring a high-strength alloy pawl pin and seamless, solid steel mandrel, the winch offers high-performance strength for securing heavy loads. Smooth ground web slots in the mandrel reduce abrasion on inserted webbing, helping to save you money on replacement straps, and Ancra combination winches are built lighter to help improve fuel economy and/or allow for greater payloads. A black powder coat finish protects the combination winch from rust and corrosion and can withstand up to 250 hours of standard salt spray testing to ensure years of service.

The recessed box combination winch can be easily installed along your truck or trailer for quick access, while the recessed box design helps solve clearance issues when installing the winch in tight spaces. With a working load limit of 5,500 lbs and the combination configuration, the recessed box combination winch makes for a convenient and versatile solution for tying down heavy-duty cargo.

 Ancra winches comply with DOT, WSTDA-T3 and Canadian Standard 905 regulations.

Specifications

Weight (lbs) 12.9
Weight (kgs) 5.9
Overall Width (inches) 10.3
Inside Frame Width (inches) 9.5
Frame Height (inches) 5.5
Frame Depth (inches) 4
Maximum width of strap used with (inches) 4
WLL - w/Webbing (lbs) 5500
WLL - w/Webbing (kgs) 2497
Stamped w/WLL true
Bottom Mount false
EPDM false
Finish Powder Coat
Material Steel
