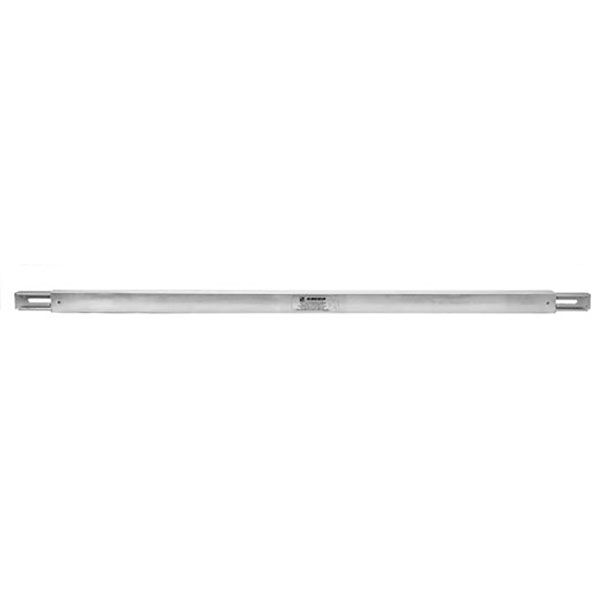

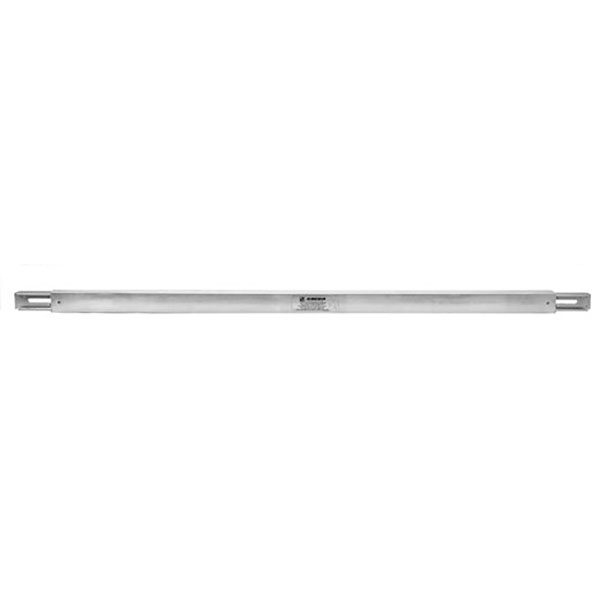

    HD Aluminum E-Track Decking Beam 92.9” – 103.8”

    Manufacturer: Ancra Cargo
    Heavy Duty Series E Track Decking Beam Adjust from 92.9" up to 103.8" long. for 96" and 102" wide trailers.
    Adjusts 92.9” – 103.8”
    3,000 lbs. Working Load Limit
    Features patented flat latch mechanism that eliminates damaged trigger mechanisms
    SKU: ACI-49039-51
    Manufacturer part number: 49039-51
    Vendor: Shippers Mall
    PRICE BREAKS - The more you buy, the more you save
    i h
    Ship to
    Shipping Method
    Estimated Delivery
    No shipping options
    Delivery date: Usually ships within 1-2 days

    Ancra HD E or A Track Decking / Shoring Beam with Flat Latch for 96" and 102" wide Trailers

    Heavy-duty aluminum E-track & A-track decking beam assembly with flat latch is engineered to provide you with the reliable strength you need for your decking and shoring applications. This beam end is designed to easily and smoothly click onto a series E or series A track to offer maximum cargo security. The high-quality aluminum construction keeps the beam lightweight and easy to handle. Able to handle a working load limit of 3,000 lbs., the beam is adjustable from 92.9 inches to 103.8 inches.

    An age-old problem most truck drivers encounter is damaged beam trigger mechanisms. To counter this, Ancra’s logistic beam features our patented flat latch mechanism that makes the job a lot easier. It’s designed for easier access and release, even while you’re wearing gloves. This can help extend your beam’s life to its full potential.

    The heavy-duty aluminum series E & A beam assembly with flat latch is designed for both shoring and decking applications. Use the beam to create a second layer to help you stack up cargo and save on space, eliminating the need to stack loads on top of each other. The beam can also be used for holding cargo still against the trailer wall for maximum security.


    • Decking WLL: 3,000 lbs./1,363 kg.
    • Shoring WLL: 2,500 lbs./1,136 kg.
    • Weight: 22.5 lbs./10.23 kg.


    Most of these items in this category are too large to ship parcel post like UPS. We will need to quote shipping cost for large items.

    We can get much better rates by quoting the shipping cost and ship via LTL carrier. Use the "Contact Us" tab on this page and send us the Ship to information. (the product name and sku# will automatically be included in your message) We will reply with a shipping quote ASAP.

    • We need FULL ship to address.
    • Quantity of the item purchasing.
    • After you receive your quote, you add the shipping cost to your order by using the link below.


    Products specifications
    Length (inches) 103
