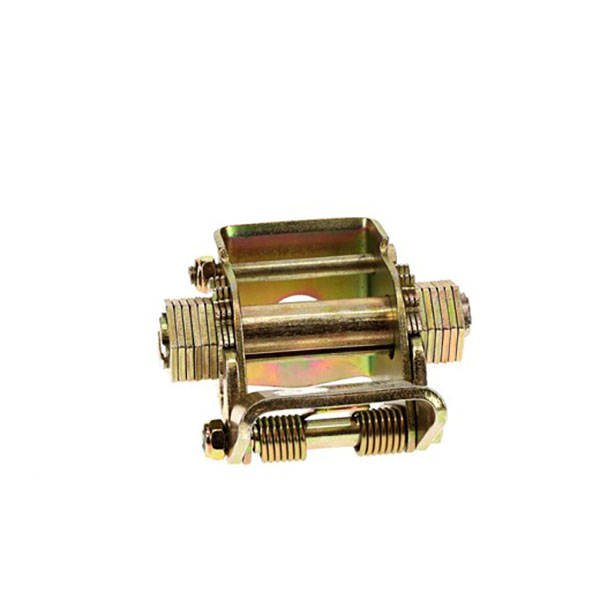

Double Hex Drive Lashing Winch

Features

Double hex drive lashing winch with single mounting hole boasts high strength as well as versatility and efficiency, making it an ideal choice for quick tie-down applications. Made of high-quality steel components, the lashing winch provides plenty of strength for securing heavy-duty cargo. The double hex design allows the winch to be tightened from either side, and the quick release latch allows the mandrel to freely spin when activated, helping you get the job done quicker.

The double hex drive lashing winch with single mounting hole can be easily bolted or welded to your truck or trailer for convenient access. With a working load limit of 2,500 lbs and double hex drive release latch, the combination winch makes for a versatile and efficient solution for tying down heavy-duty cargo.

Ancra winches comply with DOT, WSTDA-T3 and Canadian Standard 905 regulations.

Specifications

Weight (lbs) 2.2
Weight (kgs) 1
Overall Width (inches) 4.4
Inside Frame Width (inches) 2.1
Frame Height (inches) 2.5
Frame Depth (inches) 4.9
Maximum width of strap used with (inches) 4
WLL - Webbing (lbs) 2500
WLL - Webbing (kgs) 1135
WLL - w/Webbing (lbs) 2500
WLL - w/Webbing (kgs) 1135
Stamped w/WLL true

Part number 48496-11
