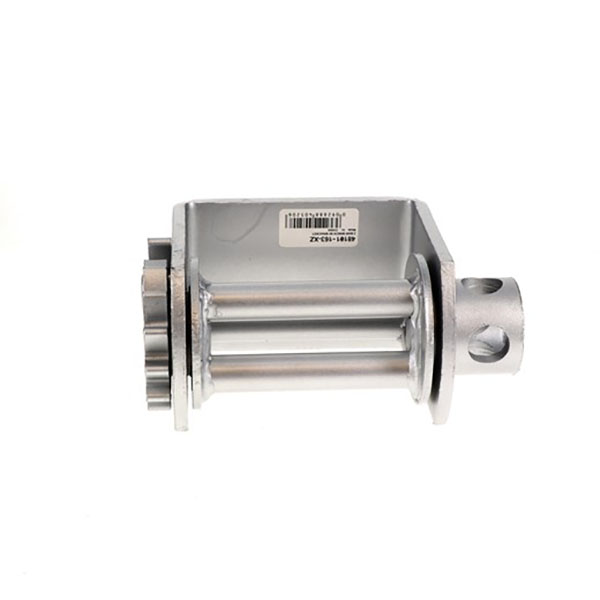

3-Bar Portable with 2SS X-Treme Zinc Web Winch

Manufacturer: Ancra Cargo
Portable design with double screws allows for versatility with temporary installation
Durable, X-Treme Zinc coat finish for optimal corrosion resistance
3-bar design for easy strap insertion during snow and ice conditions with sliding configuration
Working load limit: 6,000 lbs
SKU: ACI-48101-163-XZ
Manufacturer part number: 48101-103-XZ
Vendor: Shippers Mall
PRICE BREAKS - The more you buy, the more you save
i h
Ship to
Shipping Method
Estimated Delivery
No shipping options
Delivery date: Usually ships within 1-2 days

Portable - 3 Bar Web Winch, Xtreme Zinc, Up to 4" Webbing


3-bar portable w/2SS X-Treme zinc web winch features a portable design for temporary installation and a 3-bar mandrel that prevents it from freezing. Made for long-lasting performance, the 3-bar web winch is made with high-quality steel components, including a high-strength alloy pawl pin and a 3-bar mandrel, which allows for easy strap insertion during snow and ice conditions. As a portable winch, the 3-bar web winch comes with a set of 2 screws to allow for quick installation and detachment to provide you with more options when taking on varied heavy-duty securement jobs. To provide the maximum protection against rust and corrosion, the 3-bar web winch has been finished with our top-of-the-line X-Treme zinc coating, which can withstand up to 720 hours of harsh sodium chloride, calcium chloride, and sodium bicarbonate testing cycles. When compared to other finishes with the same test, the X-Treme zinc finish suffered only 1% of rust across the entire unit, while the black powder coat suffered five times as much, the black e-coat ten times as much, and the zinc plating sixty times as much.

The 3-bar portable w/2SS X-Treme zinc web winch be easily installed on your truck or trailer for quick access, while the portable design allows for temporary installation along the trailer frame. With a working load limit of 6,000 lbs, X-Treme zinc finish, and 3-bar design, the 3-bar web winch makes for a strong and dependable solution for tying down heavy-duty cargo.

Ancra winches comply with DOT, WSTDA-T3 and Canadian Standard 905 regulations.

NOTE: It is our recommendation that portable winches be removed from the trailer and stored when not in use. These style winches are secured to the trailer by the strap tension, not the set screws.


Weight (lbs) 11.2
Weight (kgs) 5.1
Overall Width (inches) 8.6
Inside Frame Width (inches) 4.8
Frame Height (inches) 6.5
Frame Depth (inches) 4
Maximum width of strap used with (inches) 4
WLL - w/Webbing (lbs) 6000
WLL - w/Webbing (kgs) 2724
Stamped w/WLL true
Finish X-Treme Zinc
Material Steel

Part Number 48101-163-XZ
