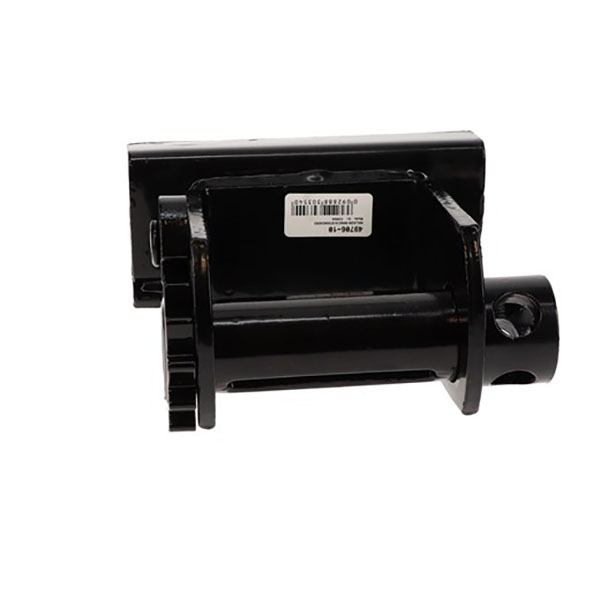

Standard Sliding Wilson Track Winch

Features

Standard Wilson track sliding web winch allows the user to install the winch at any position along either side of a flatbed trailer, giving you more options for tackling unique tie-down tasks. Made of high-quality steel for a sturdy frame, the sliding web winch also features high-strength pawl pins and a seamless, solid steel mandrel. The web slots on the mandrel have been smooth ground to prevent web wear and save you money down the road on replacement straps. A durable black powder coat finish, which can withstand up to 250 hours of standard salt spray testing, has been added to the winch to resist rust and corrosion and to ensure years of service.

The standard Wilson track sliding web winch can be easily installed at any position along either side of a flatbed trailer frame with use of Wilson track, and the winch locks into place on the track as soon as tension is applied to the webbing. With a working load limit of 5,500 lbs. and sliding configuration, the sliding web winch makes for a convenient and versatile solution for tying down heavy-duty cargo.

Ancra winches comply with DOT, WSTDA-T3 and Canadian Standard 905 regulations.

Specifications

Weight (lbs) 12.5
Weight (kgs) 5.7
Overall Width (inches) 7.9
Inside Frame Width (inches) 4.9
Frame Height (inches) 6.5
Frame Depth (inches) 4
Maximum width of strap used with (inches) 4
WLL - w/Webbing (lbs) 5500
WLL - w/Webbing (kgs) 2497
Stamped w/WLL true
Bottom Mount false
Finish Powder Coat
Material Steel
