Stationary Steel Yard Ramp Hydraulic Docklevel

Manufacturer: Vestil Manufacturing
Be the first to review this product
Stationary Hand Pump Hydraulic Edge-O-Dock at Truck End - Choose Size and Type
0Types Available

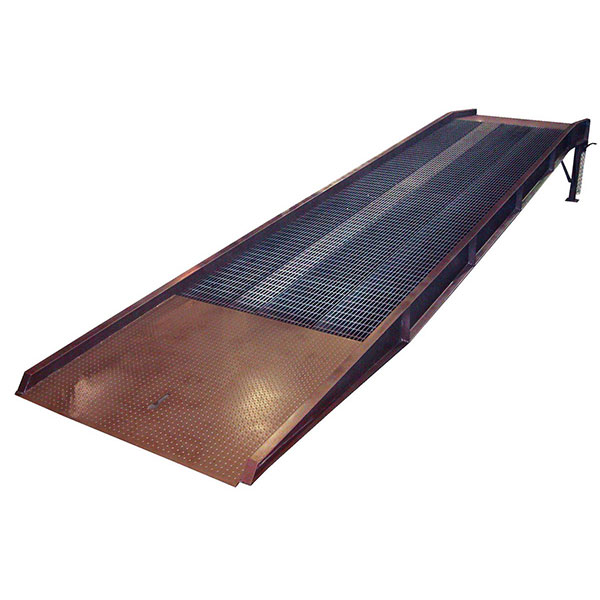

Stationary Hand Pump Hydraulic Edge-O-Dock at Truck End

Using Steel Yard Ramps quickly load and unload trucks, trailers and rail cars from ground level when no freight dock exists. Increase productivity while reducing material handling costs. Great for construction sites. A manual two-speed hand crank for easy one person height adjustment offers a service range of 45" to 62". Available in 30 foot of straight ramp or 36 foot overall length; 30 foot of straight ramp and 6 foot level off. Standard features include: 8-5/8" steel wheels, positive traction open steel grating, safety locking chains, 4" high steel safety curbs, rubber bumpers, 13 7/8" usable lip support edge, tow bar pocket and welded steel construction. Painted neutral earth-tone brown. All units must ship flatbed truck.

Most of these items in this category are too large to ship parcel post like UPS. We will need to quote shipping cost for large items.

We can get much better rates by quoting the shipping cost and ship via LTL carrier. Use the "Contact Us" tab on this page and send us the Ship to information. (the product name and sku# will automatically be included in your message) We will reply with a shipping quote ASAP.

  • We need FULL ship to address.
  • Quantity of the item purchasing.
  • After you receive your quote, you add the shipping cost to your order by using the link below.

 CLICK HERE TO ADD QUOTED SHIPPING COST TO YOUR ORDER

0 review(s)
0.0 0
Write your own review Close
  • Only registered users can write reviews
*
*
  • Bad
  • Excellent
  • Bad
  • Excellent
*
*
*
*
Steel Yard Ramp Hydr Docklevel 16K 72X36
Steel Yard Ramp Hydr Docklevel 16K 72X36
Stationary Hand Pump Hydraulic Edge-O-Dock at Truck End with a 16000 lb. capacity with overall width; 72", usable witdth is: 66", and the length is: 36', and the weight is: 6275 lbs.
SKU: SM-VS-YRDS-16-7236-H
Manufacturer part number: YRDS-16-7236-H
PRICE BREAKS - The more you buy, the more you save
Quantity
2+
4+
8+
16+
Price
$18,086.74
$17,862.06
$17,535.32
$17,220.31
$18,553.50
i h
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Delivery date: Made to Order. Currently ships in about 50 business days
Steel Yard Ramp Hydr Docklevel 16K 85X36
Steel Yard Ramp Hydr Docklevel 16K 85X36
Stationary Hand Pump Hydraulic Edge-O-Dock at Truck End with a 16000 lb. capacity with overall width; 85", usable witdth is: 78", and the length is: 36', and the weight is: 6600 lbs.
SKU: SM-VS-YRDS-16-8536-H
Manufacturer part number: YRDS-16-8536-H
PRICE BREAKS - The more you buy, the more you save
Quantity
2+
4+
8+
16+
Price
$20,037.65
$19,788.73
$19,426.74
$19,077.76
$20,554.75
i h
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Delivery date: Made to Order. Currently ships in about 50 business days
Steel Yard Ramp Hydr Docklevel 20K 85X36
Steel Yard Ramp Hydr Docklevel 20K 85X36
Stationary Hand Pump Hydraulic Edge-O-Dock at Truck End with a 20000 lb. capacity with overall width; 85", usable witdth is: 78", and the length is: 36', and the weight is: 7325 lbs.
SKU: SM-VS-YRDS-20-8536-H
Manufacturer part number: YRDS-20-8536-H
PRICE BREAKS - The more you buy, the more you save
Quantity
2+
4+
8+
16+
Price
$22,856.50
$22,572.57
$22,159.66
$21,761.58
$23,446.35
i h
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Delivery date: Made to Order. Currently ships in about 50 business days
