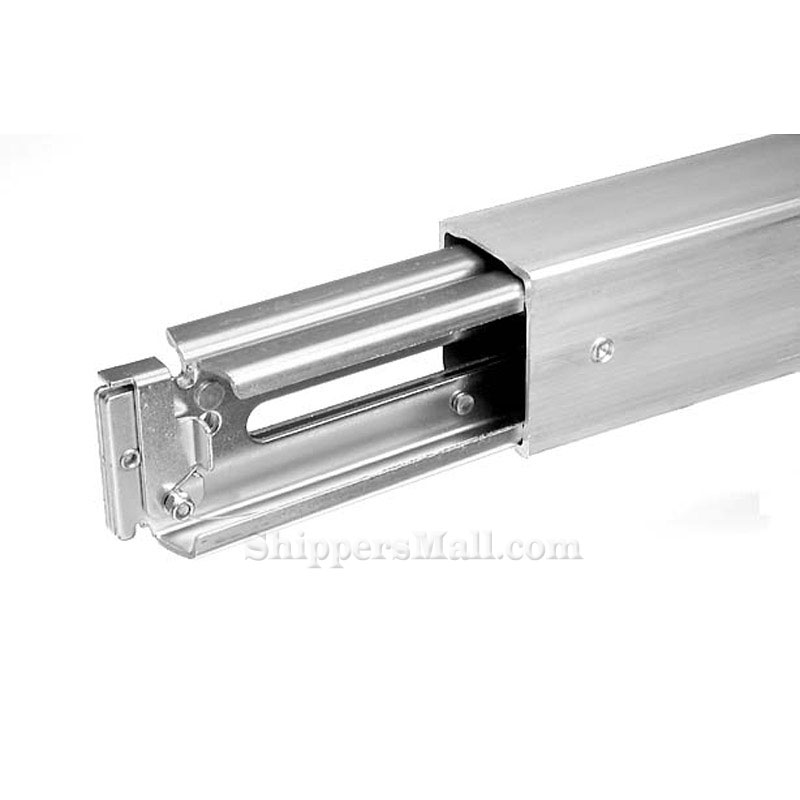

    Steel Decking beam, 103" Long

    Manufacturer: Ancra Cargo
    Locking Decking/Shoring Beam Series E-103" Long.
    Adjusts 92.1” – 102.9”
    2,000 lbs. Working Load Limit
    Constructed from 14-gauge steel
    SKU: ACI-49360-13
    Manufacturer part number: 49360-13
    Vendor: Shippers Mall
    PRICE BREAKS - The more you buy, the more you save
    Quantity
    25+
    50+
    100+
    200+
    Price
    $75.27
    $70.25
    $67.99
    $65.86
    $81.06
    i h
    Ship to
    *
    *
    Shipping Method
    Name
    Estimated Delivery
    Price
    No shipping options
    Delivery date: Usually ships within 1-2 days

    Steel Decking Beam for 96" & 102" Trailers

    Steel decking/shoring beam features a patented flat latch mechanism that eliminates the age-old problem of damaged trigger mechanisms. The trigger makes it easier to release the beam from the logistic track, even if you’re wearing gloves. This can help reduce accidental damage to the beam head, extending the life of the beam so that it can continue to help you secure your loads.

    Engineered from 14-gauge steel for enhanced durability, this beam works flawlessly with a Series E and Series A track and is adjustable from 92.1 inches to 102.9 inches. It can handle a working load limit of 2,000 lbs., giving it the strength to support and secure your cargo easily.

    The beam can be used for both shoring and decking applications. Use this logistic beam to separate loads from each other, preventing them from knocking into each other and causing unnecessary freight damage. The beam can also be used to create a second deck within the trailer, giving you more space to secure even more cargo.



    • Decking WLL: 2,000 lbs./900 kg.
    • Shoring WLL: 1,100 lbs./499 kg.
    • Adjustable Range: 92.1 – 102.9 in./
    • Weight: 39 lbs

    Most of these items in this category are too large to ship parcel post like UPS. We will need to quote shipping cost for large items.

    We can get much better rates by quoting the shipping cost and ship via LTL carrier. Use the "Contact Us" tab on this page and send us the Ship to information. (the product name and sku# will automatically be included in your message) We will reply with a shipping quote ASAP.

    • We need FULL ship to address.
    • Quantity of the item purchasing.
    • After you receive your quote, you add the shipping cost to your order by using the link below.

     CLICK HERE TO ADD QUOTED SHIPPING COST TO YOUR ORDER

    Products specifications
    Length (inches) 103
