Steel Truck Dockboard - 84" Wide X 48" Long

Manufacturer: Vestil Manufacturing
84W X 48L Truck Dockboard with a 25,000 lb. Capacity
SKU: SM-VS-TS-25-8448
Manufacturer part number: TS-25-8448
PRICE BREAKS - The more you buy, the more you save
i h
Ship to
Shipping Method
Estimated Delivery
No shipping options
Delivery date: Made to Order, Currently ships in about 10 to 15 business days

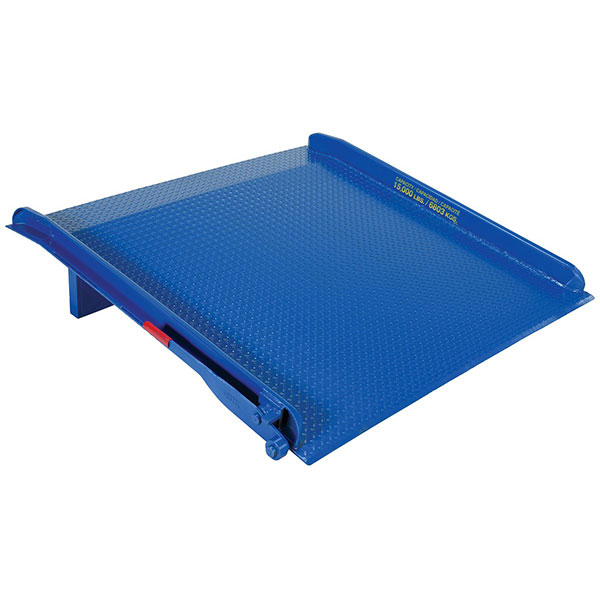

84" Wide X 48" Long Steel Truck Dockboard with a 25,000 lb. Capacity

The Steel Truck Dockboard is constructed of high strength (55,000 psi) steel for long life. Beveled edges on both ends permit smooth entry and exit. Deck is diamond plated for safe, efficient use. Welded safety curbs for maximum strength. Locking legs minimize ramp movement and are uneven to allow the dockboard to sit canted for easier floor pickup by fork trucks when not in use. Legs are located 12" from the edge of the dockboard. The bend is 11 degrees and 9 inches from beveled edge. Standard with Lever Lift for quick portability with fork truck. Manufactured in compliance with OSHA. Optional accessories: lifting chains, span locks, span pins/holes, and removable pickup loops.

Span pins and holes are like an extra set of legs in case the gap between the dock and the truck is wide enough that the plate may slide. These will help keep it stationary in wider gaps so it wont fall off the dock/truck to the ground below.

Sliding Span Locks The Sliding span locks are basically adjustable legs.

The removable pick-up loop option is essentially two pieces of rectangle tube with a T welded to the bottom of each. The board has two slots cut at 24” centers. To use the lifting loops, you insert the T parallel into the slot, turn 90° so that the T is perpendicular with the slot, then lift with a fork truck.

The handles are two handles welded to one side so it can be lifted up high enough to get the fork lift under to pick it up.

Ships by Truck, use the contact form on this page to get a shipping quote

Most of these items in this category are too large to ship parcel post like UPS. We will need to quote shipping cost for large items.

We can get much better rates by quoting the shipping cost and ship via LTL carrier. Use the "Contact Us" tab on this page and send us the Ship to information. (the product name and sku# will automatically be included in your message) We will reply with a shipping quote ASAP.

  • We need FULL ship to address.
  • Quantity of the item purchasing.
  • After you receive your quote, you add the shipping cost to your order by using the link below.


Products specifications
Width (Inches)84
Length (inches)48
Capacity (Lbs.)25000
TypeSteel Truck Dockboard
Made From (Material)Steel
Est. Lead Time (days)40
