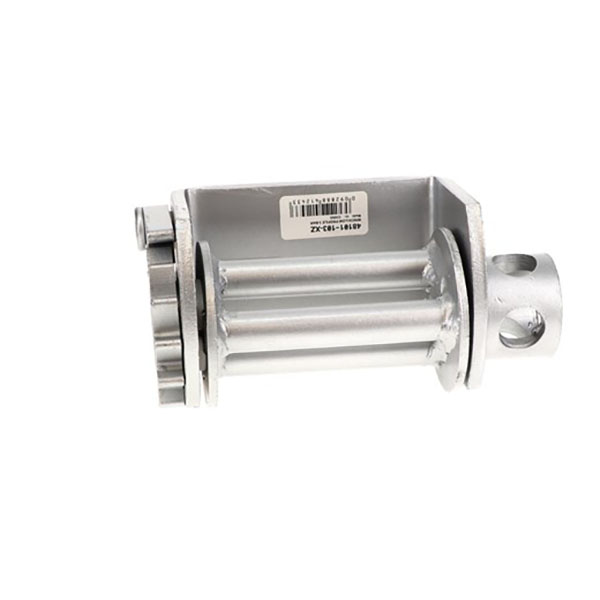

    3-Bar Weld-On Side Mount X-Treme Zinc Web Winch

    Manufacturer: Ancra Cargo
    High-strength steel components for reliable performance 
    Durable, X-Treme Zinc coat finish for optimal corrosion resistance
    3-bar design for easy strap insertion during snow and ice conditions with weld-on side mount configuration 
    Working load limit: 6,000 lbs
    SKU: ACI-48101-103-XZ
    Manufacturer part number: 48101-103-XZ
    Vendor: Shippers Mall
    PRICE BREAKS - The more you buy, the more you save
    i h
    Ship to
    Shipping Method
    Estimated Delivery
    No shipping options
    Delivery date: Usually ships within 1-2 days

    Side Mount X-Treme Web Winch, 3 Bar Zinc Plated


    Manufactured for extreme durability, the 3-bar weld-on side mount X-Treme zinc web winch features a 3-bar design that prevents the mandrel from freezing in ice conditions. Built with high-quality steel for long-lasting performance, the web winch includes a high-strength alloy pawl pin, while the 3-bar mandrel allows for easy strap insertion in snow and ice conditions. For optimal durability and reliability, Ancra added the X-Treme zinc finish, which is our highest performing finish. The X-Treme zinc finish can withstand up to 720 hours of harsh sodium chloride, calcium chloride, and sodium bicarbonate testing cycles and suffered only 1% of rust across the entire unit when tested, while the black powder coat suffered five times as much, the black e-coat ten times as much, and the zinc plating sixty times as much. 

    The 3-bar weld-on side mount X-Treme zinc web winch can be easily welded to  your truck or trailer for maximum sturdiness and quick access. With a working load limit of 6,000 lbs, X-Treme zinc finish, and 3-bar design, the 3-bar web winch makes for a durable and dependable solution for tying down heavy-duty cargo.

    Ancra winches comply with DOT, WSTDA-T3 and Canadian Standard 905 regulations.


    Weight (lbs) 9.5
    Weight (kgs) 4.3
    Overall Width (inches) 8.6
    Inside Frame Width (inches) 4.8
    Frame Height (inches) 4.3
    Frame Depth (inches) 4
    Maximum width of strap used with (inches) 4
    WLL - w/Webbing (lbs) 6000
    WLL - w/Webbing (kgs) 2724
    Stamped w/WLL true

    Model 48101-103-XZ
