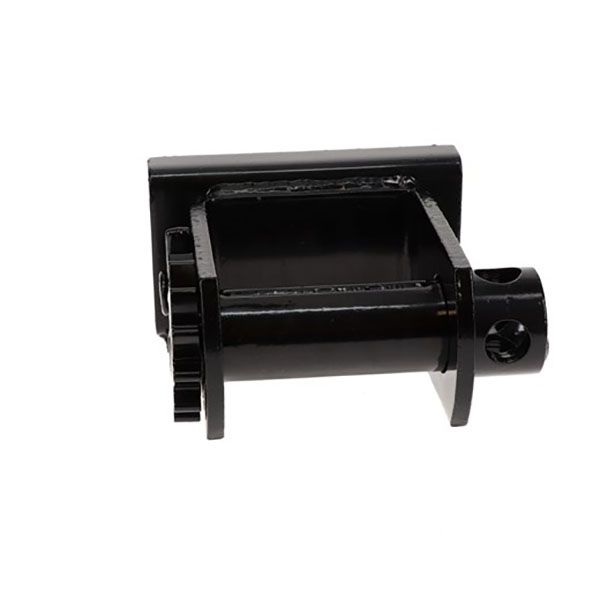

Utility Trailer Track Slider Web Winch - 49246-10-BP

Features

Designed to be used with utility side rail track, the standard utility trailer track sliding web winch easily locks into place at any position along the track once tension is applied to the webbing. Built from high-quality steel, the sliding web winch includes high-strength alloy pawl pins as well as a seamless, solid steel mandrel so you can be confident when tying down heavy-duty loads. Smooth ground web slots help to prevent wear and abrasion on your webbing, saving you money down the line on replacement straps. With a black powder coat finish, the winch is proven to withstand up to 250 hours of standard salt spray testing to ensure years of reliable service.

The standard utility trailer track sliding web winch can be easily installed at any position along either side of a flatbed trailer frame for easy access. The winch locks into place on the track as soon as tension is applied to the webbing. With a working load limit of 5,500 lbs and sliding configuration, the sliding web winch makes for a convenient and versatile solution for tying down heavy-duty cargo.

The standard utility trailer track sliding web winch is compatible with the following Ancra track: 42357-11; 42357-21; 49242-10-120, or equivalent.

Ancra winches comply with DOT, WSTDA-T3 and Canadian Standard 905 regulations.

Specifications

Weight (lbs) 13
Weight (kgs) 5.9
Overall Width (inches) 7.6
Inside Frame Width (inches) 4.6
Frame Height (inches) 6.5
Frame Depth (inches) 3.5
Maximum width of strap used with (inches) 4
WLL - w/Webbing (lbs) 5500
WLL - w/Webbing (kgs) 2497
Stamped w/WLL true
Bottom Mount false
Finish Powder Coat
