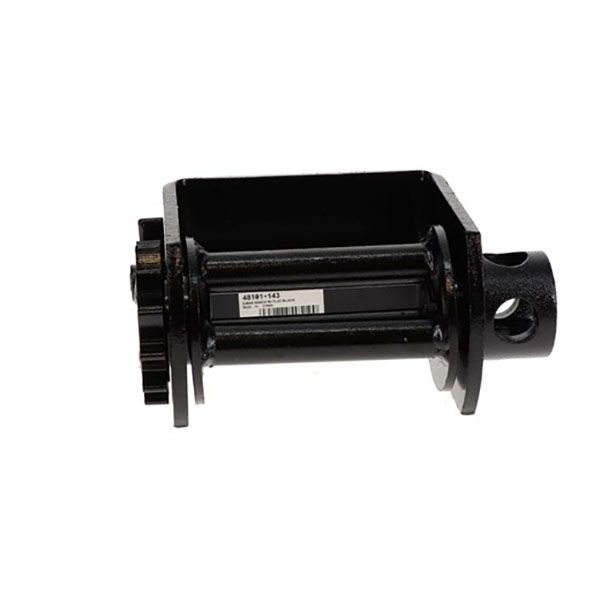

Web Winch - 3-Bar - Standard Bottom Mount

Features

3-bar weld-on bottom mount web winch can be welded to a trailer for maximum sturdiness and the 3-bar design prevents the mandrel from freezing up. Made with high-quality steel for strength and durability, including a high-strength alloy pawl pin and heavy-duty 3-bar mandrel, you can depend on the bottom mount web winch for securing a variety of heavy-duty cargo. The 3-bar design prevents the mandrel from freezing up during ice and snow conditions, making strap insertion far easier and quicker. A durable black powder coat finish protects the bottom mount web winch from rust and corrosion with a proven resistance to standard salt spray testing up to 250 hours to ensure years of service.

The 3-bar weld-on bottom mount web winch can be easily welded to  your truck or trailer for maximum sturdiness and quick access. With a working load limit of 6,000 lbs, weld-on configuration, and 3-bar design, the weld-on bottom mount web winch makes for a sturdy and convenient solution for tying down heavy-duty cargo.

Ancra winches comply with DOT, WSTDA-T3 and Canadian Standard 905 regulations.

Specifications

Weight (lbs) 11.3
Weight (kgs) 5.1
Overall Width (inches) 8.6
Inside Frame Width (inches) 4.8
Frame Height (inches) 5.5
Frame Depth (inches) 4
Maximum width of strap used with (inches) 4
WLL - w/Webbing (lbs) 6000
WLL - w/Webbing (kgs) 2724
Stamped w/WLL true
Finish Powder Coat

Part Number 48101-143
