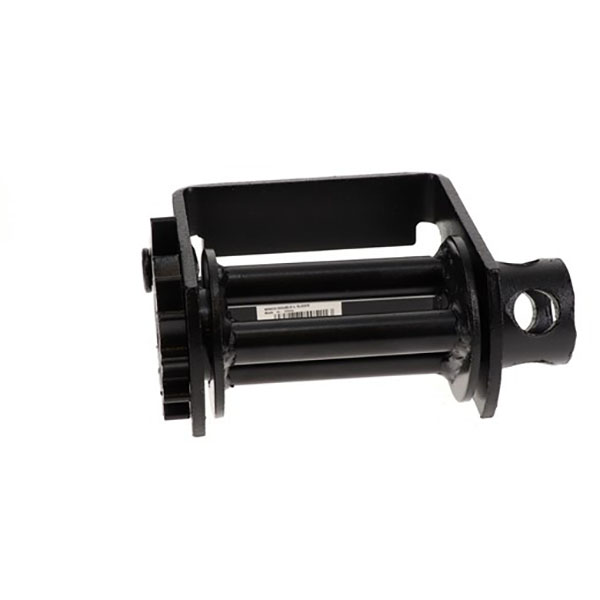

3-Bar Standard Double L Track Sliding Web Winch

Features

3-bar design, the 3-bar standard double L track sliding winch prevents the mandrel from freezing and allows for easy strap insertion during snow and ice conditions. Made with a heavy-duty steel frame and a high-strength alloy pawl pin, the 3-bar web winch has plenty of strength for securing heavy-duty cargo, while smooth mandrel bars protect your straps from abrasion. The 3-bar design makes using the winch easy and quick in snow and ice conditions, so you can be confident using the winch in nearly any weather. A durable black powder coat finish provides increased protection against rust and corrosion, allowing the winch to withstand up to 250 hours of standard salt spray testing.

The 3-bar standard double L track sliding web winch can be easily installed at any position along either side of a flatbed trailer frame with Ancra L track for easy access. The winch locks into place on the track as soon as tension is applied to the webbing. With a working load limit of 5,500 lbs and 3-bar design the sliding web winch makes for a versatile and reliable solution for tying down heavy-duty cargo.

The 3-bar standard double L sliding web winch is compatible with the following Ancra track: 49242-10-120; 49789-10-120.00, or equivalent.

Ancra winches comply with DOT, WSTDA-T3 and Canadian Standard 905 regulations.

Specifications

Weight (lbs) 8.7
Weight (kgs) 3.9
Overall Width (inches) 8.6
Inside Frame Width (inches) 4.9
Frame Height (inches) 5.7
Frame Depth (inches) 4
Maximum width of strap used with (inches) 4
WLL - w/Webbing (lbs) 5500
WLL - w/Webbing (kgs) 2497
Stamped w/WLL true
Bottom Mount false
Finish Powder Coat
