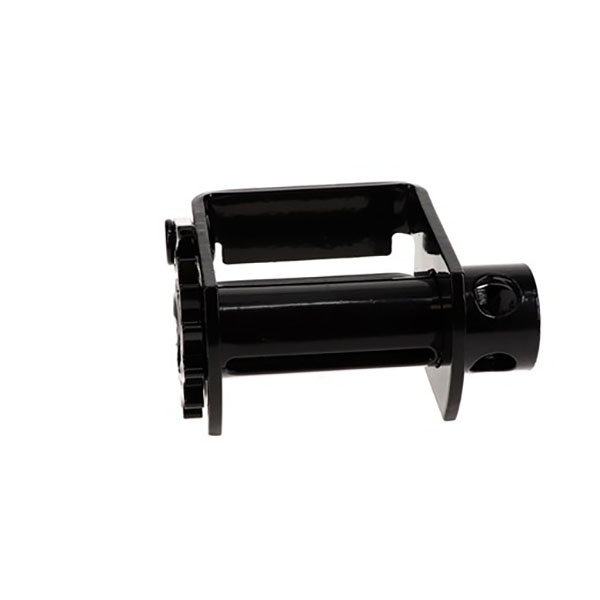

Low-Profile Double L Track 7mm Sliding Winch

Features

Low profile double L track 7-mm. sliding web winch features a compact design with low weight and high strength for securing heavy-duty cargo. With high-strength alloy pawl pins and a seamless, solid steel mandrel, the sliding winch has plenty of strength for a variety of tie-down applications. Smooth ground web slots in the mandrel prevent abrasion to save you money down the line on replacement straps, and the low profile design makes it easy to install the winch in tighter spaces. With a 7-mm. design, the average weight per winch has been reduced by 2 lbs. to increase fuel economy and/or your payload, while the steel components have been heat-treated to boost their strength and durability. A black powder coat finish protects the winch from rust and corrosion with resistance to standard salt spray testing up to 250 hours.

The low profile double L track 7-mm. sliding web winch can be easily installed at any position along either side of a flatbed trailer frame with Ancra L track for easy access. The winch locks into place on the track as soon as tension is applied to the webbing. With a working load limit of 5,500 lbs and low profile 7-mm. design, the sliding web winch makes for a strong and convenient solution for tying down heavy-duty cargo.

Ancra winches comply with DOT, WSTDA-T3 and Canadian Standard 905 regulations.

Specifications

Weight (lbs) 6.2
Weight (kgs) 2.8
Overall Width (inches) 7.5
Inside Frame Width (inches) 4.6
Frame Height (inches) 5.3
Frame Depth (inches) 4
Maximum width of strap used with (inches) 4
WLL - w/Webbing (lbs) 5500
WLL - w/Webbing (kgs) 2497
Stamped w/WLL true
Bottom Mount false
Finish Powder Coat
Material Steel

Part number 49207-187
