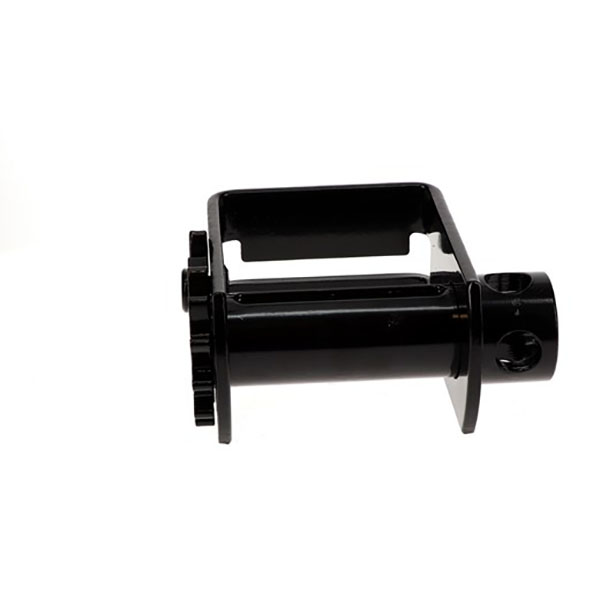

Winch Double L Slider 7MM Web Winch

Features

Double L track 7-mm. sliding web winch boasts lightweight with improved strength and the versatility to be placed anywhere either side of a flatbed trailer. The high-strength alloy pawl pin, seamless, solid steel mandrel, and sturdy frame have all been heat-treated for improved strength while the 7-mm. design helps to reduce the average weight per winch by 2 lbs., helping you to improve fuel economy and/or increase your payload. Smooth ground web slots in the mandrel prevent abrasion, saving you money on replacement straps down the line. With a durable black powder coat finish, the sliding web winch is also protected from rust and corrosion with a proven resistance of standard salt spray testing up to 250 hours.

The standard double L track 7-mm. sliding web winch can be easily installed at any position along either side of a flatbed trailer frame with Ancra L track for easy access. The winch locks into place on the track as soon as tension is applied to the webbing. With a working load limit of 5,500 lbs and 7-mm. design, the sliding web winch makes for an strong and sturdy solution for tying down heavy-duty cargo.

Ancra winches comply with DOT, WSTDA-T3 and Canadian Standard 905 regulations.

Specifications

Weight (lbs) 11
Weight (kgs) 5
Overall Width (inches) 7.5
Inside Frame Width (inches) 4.6
Frame Height (inches) 6
Frame Depth (inches) 4
Maximum width of strap used with (inches) 4
WLL (lbs) 5500
WLL (kgs) 2497
WLL - w/Webbing (lbs) 5500
WLL - w/Webbing (kgs) 2497
Stamped w/WLL true
Attachment Double-L Slider
