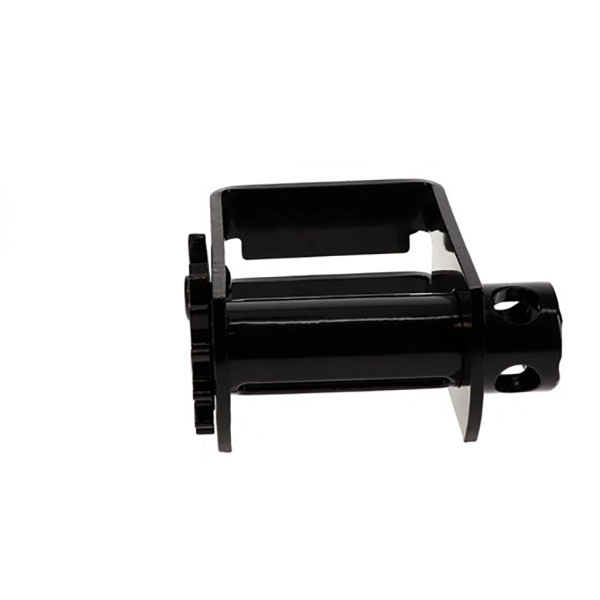

Winch Double L Slider Storable from Ancra

Features

With a lighter build but quality strength, the storable double L track 7-mm. sliding web winch can be placed at any position along either side of your trailer. With a forged steel frame, high-strength alloy pawl pins, and a seamless, solid steel mandrel, the sliding web winch can take on heavy-duty tie-down tasks. Smooth ground web slots in the mandrel allow for the webbing to slide easily and prevents abrasion. With a 7-mm. design, the winch is lighter by 2 lbs. on average per winch to allow for increased fuel economy and/or a greater payload, while the steel components have been heat-treated to raise their working load limit and overall strength. A durable black powder coat finish protects the winch from rust and corrosion with a proven resistance to up to 250 hours of standard salt spray testing, so you can be confident using the winch in harsh road conditions.

The ratcheting double L track 7-mm. sliding web winch can be easily installed at any position along either side of a flatbed trailer frame with Ancra L track for easy access. The winch locks into place on the track as soon as tension is applied to the webbing. With a working load limit of 5,500 lbs, ratcheting system, and storable design, the sliding web winch makes for an efficient and convenient solution for tying down heavy-duty cargo.

Ancra winches comply with DOT, WSTDA-T3 and Canadian Standard 905 regulations.

Specifications

Weight (lbs) 6.8
Weight (kgs) 3.1
Overall Width (inches) 7.5
Inside Frame Width (inches) 4.6
Frame Height (inches) 6.6
Frame Depth (inches) 4
Maximum width of strap used with (inches) 4
WLL - w/Webbing (lbs) 5500
WLL - w/Webbing (kgs) 2497
Stamped w/WLL true
Bottom Mount false
EPDM false
Finish Powder Coat
Material Steel

Part number 49207-127
