    Winch, Standard 3-Bar Double L Slider Zinc Plated

    Manufacturer: Ancra Cargo
    Double L Slider Winch, Xtreme Zinc Plated
    High-strength steel components for reliable performance
    Durable, X-Treme Zinc coat finish for optimal corrosion resistance
    3-bar design for easy strap insertion during snow and ice conditions with sliding configuration
    Working load limit: 5,500 lbs
    SKU: ACI-49207-273-XZ
    Manufacturer part number: 49207-273-XZ
    Vendor: Shippers Mall
    PRICE BREAKS - The more you buy, the more you save
    Quantity
    5+
    20+
    30+
    40+
    Price
    $76.93
    $71.23
    $68.69
    $61.64
    $87.42
    i h
    Ship to
    *
    *
    Shipping Method
    Name
    Estimated Delivery
    Price
    No shipping options
    Delivery date: Usually ships within 1-2 days

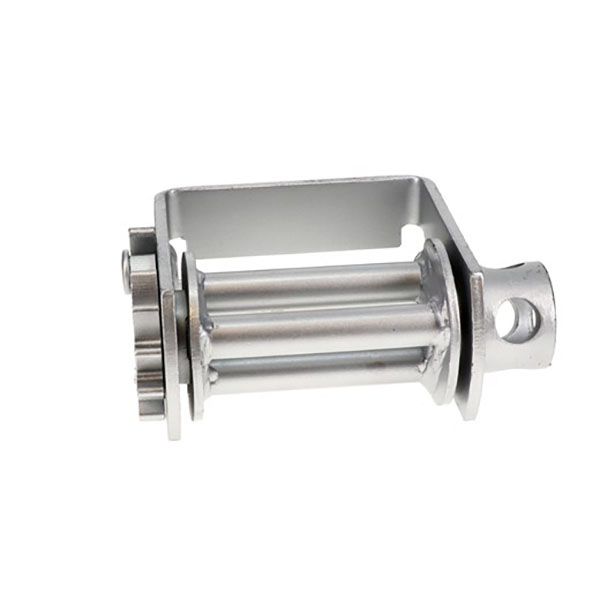

    Winch 3-Bar Standard Double L Track Slider, Zinc Plated

    Features

    Designed to allow quick strap insertion in icy conditions, the 3-bar double L track X-Treme zinc sliding winch provides high durability for flatbed operations. Made with high-performance steel components, including a high-strength alloy pawl pin and convenient 3-bar mandrel, the web winch easily supports heavy-duty cargo. With the ability to slide anywhere along the trailer with the use of double L track, the 3-bar sliding winch provides versatility and provides you with options to adapt and take on challenging tie-down tasks. To protect the winch from rust and corrosion, Ancra added the X-Treme zinc finish, which is our highest performing finish. When subjected to harsh sodium chloride, calcium chloride, and sodium bicarbonate testing cycles, the X-Treme zinc finish withstood 720 hours and suffered only 1% of rust across the entire unit, while the black powder coat suffered five times as much, the black e-coat ten times as much, and the zinc plating sixty times as much.

    The 3-bar double L track X-Treme zinc sliding web winch can be easily installed at any position along either side of a flatbed trailer frame with double L track for easy access. The winch locks into place on the track as soon as tension is applied to the webbing. With a working load limit of 5,500 lbs, X-Treme zinc finish, and 3-bar design, the 3-bar web winch makes for a strong and dependable solution for tying down heavy-duty cargo.

    Ancra winches comply with DOT, WSTDA-T3 and Canadian Standard 905 regulations.

    Specifications

    Weight (lbs) 8.7
    Weight (kgs) 3.9
    Overall Width (inches) 8.6
    Inside Frame Width (inches) 4.9
    Frame Height (inches) 5.7
    Frame Depth (inches) 4
    Maximum width of strap used with (inches) 4
    WLL - w/Webbing (lbs) 5500
    WLL - w/Webbing (kgs) 2497
    Stamped w/WLL true
    Bottom Mount false
    EPDM false
    Finish X-Treme Zinc
    Material Steel
