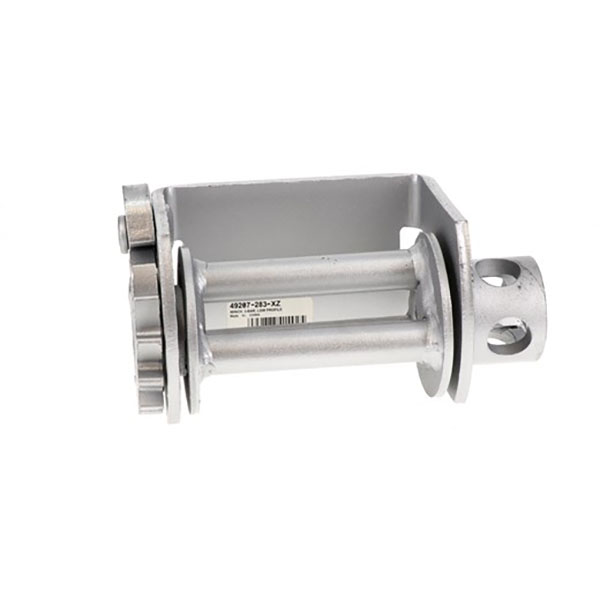

Winch, Standard 3-Bar Double L Slider Zinc Plated Low Profile

Winch 3-Bar Standard Double L Track Slider, Zinc Plated, Low Profile

Features

3-bar low profile double L track X-Treme zinc sliding web winch makes securing cargo in freezing temps quick and easy with the open 3-bar design. Strong steel components make up the winch, including a high-strength alloy pawl pin and durable 3-bar steel mandrel, which allows for easy strap insertion during snow and ice conditions. The compact, low profile design can help with issues of space while the sliding configuration provides high versatility so you can quickly adapt to different cargo securement jobs. With the addition of our top-of-the-line X-Treme zinc finish, the 3-bar web winch comes with the highest protection against rust and corrosion we offer. The X-Treme zinc finish stands up to 720 hours of harsh sodium chloride, calcium chloride, and sodium bicarbonate testing cycles while suffering a mere 1% of rust across the entire unit, while the black powder coat suffered five times as much, the black e-coat ten times as much, and the zinc plating sixty times as much.

The 3-bar low profile double L track X-Treme zinc sliding web winch can be easily installed at any position along either side of a flatbed trailer frame with double L track for easy access. The winch locks into place on the track as soon as tension is applied to the webbing. With a working load limit of 5,500 lbs, X-Treme zinc finish, and 3-bar design, the 3-bar web winch makes for a strong and dependable solution for tying down heavy-duty cargo.

Ancra winches comply with DOT, WSTDA-T3 and Canadian Standard 905 regulations.

Specifications

Weight (lbs) 9.2
Weight (kgs) 4.2
Overall Width (inches) 8.6
Inside Frame Width (inches) 4.9
Frame Height (inches) 4.7
Frame Depth (inches) 4
Maximum width of strap used with (inches) 4
WLL - w/Webbing (lbs) 5500
WLL - w/Webbing (kgs) 2497
Stamped w/WLL true
Bottom Mount false
Finish X-Treme Zinc
